3–15 kW Solar Power Generation System**

The 3–15 kW Solar Power Generation System is a next-generation renewable energy solution designed to deliver reliable, efficient, and environmentally friendly power for households, farms, commercial facilities, and remote locations. By converting sunlight into clean electricity, this system significantly reduces dependence on conventional energy sources such as oil, gas, and coal, offering long-term cost savings while supporting global carbon-reduction goals.

Built for versatility and durability, the system integrates high-efficiency solar panels housed in tempered-glass frames. These panels are engineered to withstand harsh weather conditions while remaining lightweight enough for easy transportation and installation. Whether deployed in rural areas, off-grid environments, or places with unstable grid supply, the system ensures a dependable and steady energy output throughout the year.

At the heart of this power solution is an intelligent, all-in-one design that combines a pure sine wave inverter, MPPT solar controller, and LiFePO₄ battery pack within a single unit. The built-in solar charger enhances energy conversion efficiency, while the LCD digital display provides real-time monitoring of key performance parameters including battery level, photovoltaic (PV) input, output voltage, load rate, and working status. Multiple safety protections—covering overcharge, over-discharge, overload, and short circuit—ensure safe operation for users of all experience levels.

The system includes flexible output options suitable for modern households and facilities. With AC220V output and multiple DC ports (USB 5V, PD18W USB, DC12V), users can power devices ranging from phones and laptops to lighting systems, kitchen appliances, and sensitive equipment. The pure sine wave inverter guarantees stable and noise-free energy output, making it fully compatible with computers, routers, medical electronics, and other devices that require clean and consistent power.

Operation is designed to be simple and intuitive. To start generating electricity, users only need to activate the battery breaker, connect the solar panels, and switch on the inverter—no professional installation or debugging required. The system automatically detects PV input and distributes power based on configured priorities. Through the LCD menu, users can customize settings such as output voltage (208V/220V/230V/240V), frequency (50/60Hz), and their preferred working mode to optimize system performance in different environments.

One of the system’s key advantages is its advanced energy-management flexibility. Users can choose from multiple power-priority modes, including solar-first, mains-first, or hybrid (PV/battery/mains), allowing them to tailor operation based on available sunlight, battery capacity, or electricity tariffs. Charging modes are equally flexible: PV charging for off-grid situations, grid charging for low-sun days, or hybrid charging for maximum efficiency. This adaptability makes the system suitable for diverse applications—ranches, farmhouses, border checkpoints, fish farms, cabins, workshops, and emergency backup scenarios.

Equipped with MPPT (Maximum Power Point Tracking) controllers, the system ensures optimal energy harvest from solar panels even under weak or fluctuating sunlight. Pure sine wave output further enhances system stability, while UPS mode protects sensitive electronics from outages or voltage drops. This guarantees seamless switching between power sources, preventing data loss or equipment shutdown during grid interruptions.

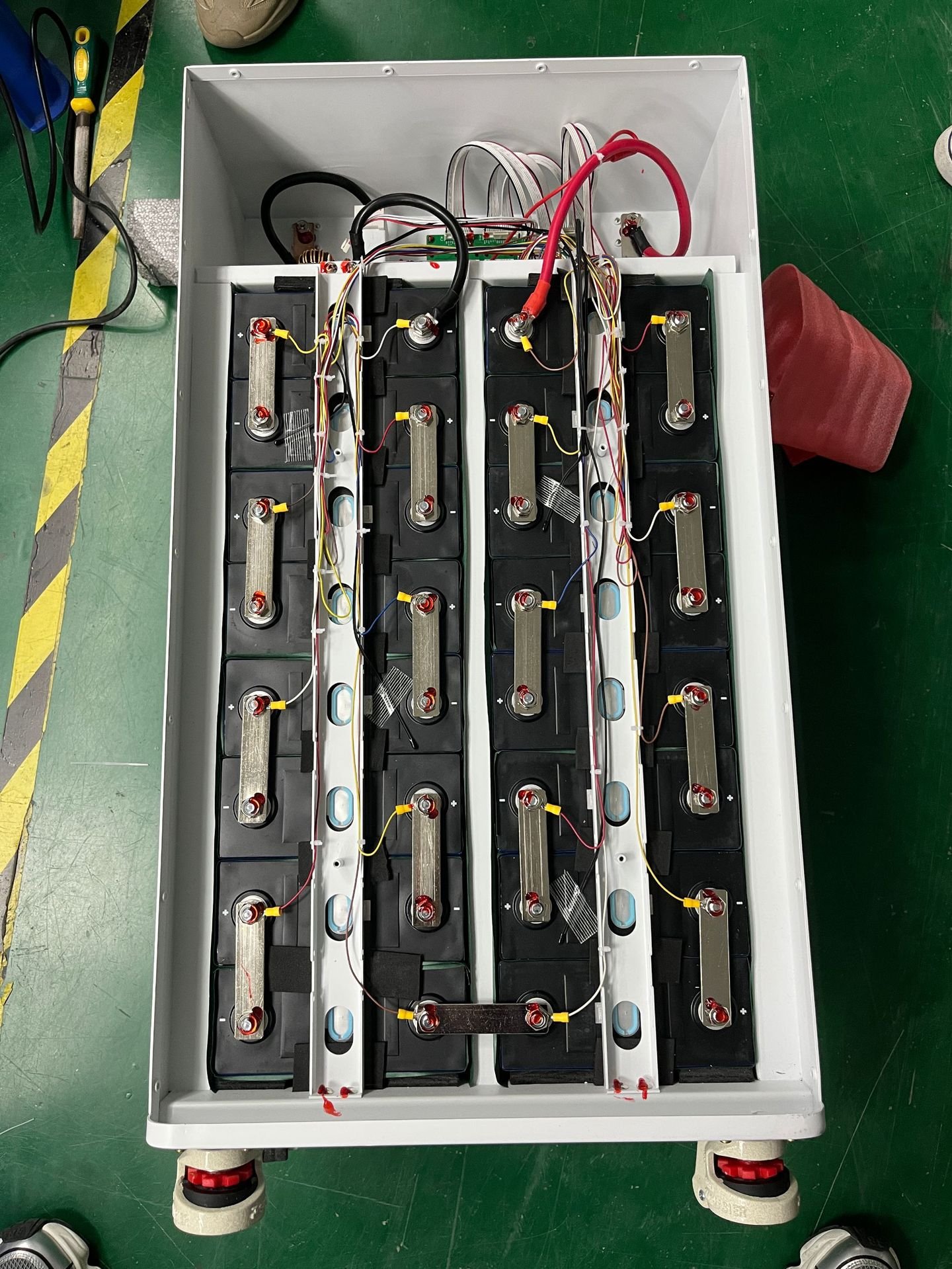

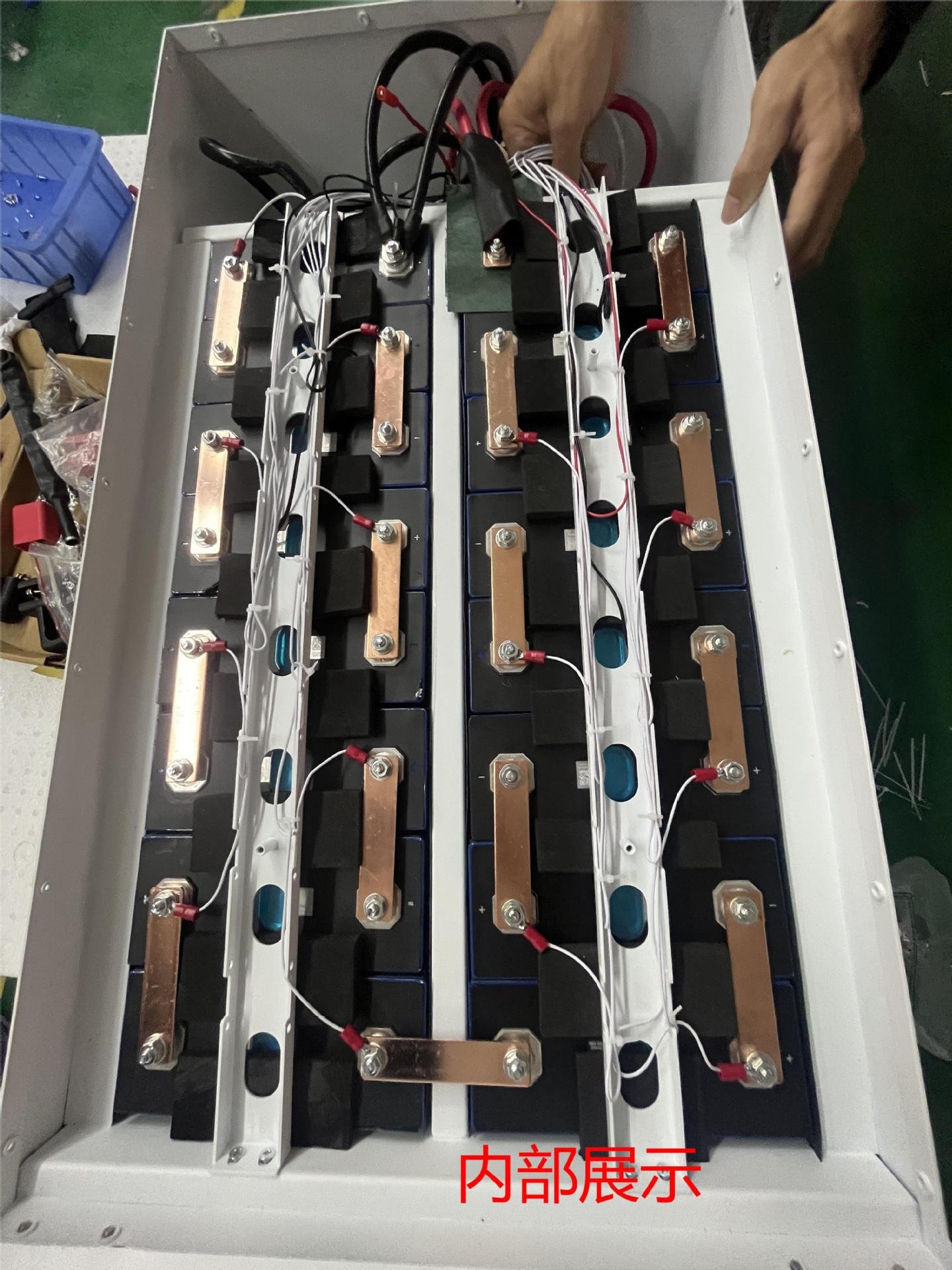

Engineered with practicality in mind, the system is fully sealed against dust, shock, and moisture, delivering quiet and stable performance in harsh field environments. Its modular structure allows easy expansion or replacement of components, making it ideal for both small-scale residential use and medium-sized commercial applications. The LiFePO₄ battery pack provides long cycle life, high safety, and stable discharge characteristics, ensuring consistent performance over years of operation.

With its blend of high output, user-friendly operation, and robust protection features, the 3–15 kW Solar Power Generation System stands out as a dependable choice for anyone seeking sustainable energy independence. It is an excellent investment for locations with unreliable grids, remote working sites, rural industries, emergency backup requirements, and environmentally conscious households.

---

Product Specifications (15 Lines)

• Model Range: 3.6 kW, 6.2 kW, 8.2 kW, 10 kW, 15 kW

• Inverter Type: Pure Sine Wave (Inbuilt)

• Inverter Voltage: 24 V (3.6 kW), 48 V (other models)

• Inverter Power: 3.6 kW, 6.2 kW, 8.2 kW, 10 kW, 11.2 kW (15 kW model)

• Solar Controller: MPPT (24 V 80 A for 3.6 kW; 48 V 80 A/120 A/160 A for others)

• Built-in Battery: LiFePO₄ (25.6 V 130 Ah for 3.6 kW; 51.2 V 130–280 Ah for other models)

• AC Input/Output: AC220V, Automatic Switching Between Grid and Solar

• DC Output Ports: USB 5 V ×2, PD18W USB ×2, DC12 V ×2

• Output Voltage Setting: 208V/220V/230V/240V (default 230V)

• Output Frequency: 50Hz/60Hz (default 50Hz)

• Charging Modes: PV-Only, Grid-Only, PV/Grid Hybrid

• Max Grid Charging Current: Up to 60 A (default 40 A)

• Max Charging Current (MCC): 10–120 A (Adjustable)

• Product Dimensions: 820×480×178 mm to 1010×510×248 mm

• Weight: 42.8 kg (3.6 kW) to 137.5 kg (15 kW)
