7016 High/Low Temperature Lubricating Grease
Wide-Temperature, Water-Resistant Grease for Aviation Electric Machines
Product Overview
7016 High/Low Temperature Lubricating Grease is a high-performance synthetic grease specifically developed for bearings operating under wide temperature ranges and demanding service conditions. It is formulated using synthetic base oil thickened with an organic gelling agent, combined with carefully selected antioxidant and performance-enhancing additives. This balanced formulation ensures excellent lubrication reliability at both extremely low and high temperatures, while maintaining outstanding mechanical stability and water resistance.
Manufactured in accordance with Q/SH303 119, 7016 grease is designed to meet the strict requirements of aviation electric machines, including generators, motors, inverters, and other precision rotating equipment. It is also suitable for various industrial rolling bearings exposed to high temperatures, moisture, or long operating cycles.
Key Performance Characteristics
Excellent High and Low Temperature Performance
7016 grease provides stable lubrication across a broad temperature range from –60 °C to +200 °C, with short-term resistance up to 250 °C. Its high dropping point of 315 °C ensures grease structure integrity at elevated temperatures, while low apparent viscosity at low temperatures enables smooth start-up and reduced bearing torque.
Superior Mechanical and Colloidal Stability
The organic thickener system offers excellent resistance to mechanical shear and structural degradation. This ensures consistent grease consistency, reduced oil separation, and reliable long-term lubrication for precision bearings operating under vibration or continuous rotation.
Good Water Resistance
7016 grease demonstrates strong resistance to water washout, allowing bearings to operate reliably in humid or damp environments. This characteristic is especially important for aviation and industrial applications where condensation or moisture exposure cannot be avoided.
Outstanding Oxidation and Chemical Stability
Advanced antioxidant additives protect the grease against oxidation and thermal degradation. Long-term oxidation testing shows no pressure drop, confirming excellent chemical stability and extended service life.
Typical Applications
7016 High/Low Temperature Lubricating Grease is recommended for lubrication of rolling bearings and precision components operating under wide temperature and high reliability requirements, including:
-
Aviation electric motors and generators
-
Aircraft inverters and auxiliary power equipment
-
High-speed and high-temperature industrial rolling bearings
-
Precision motors and electrical machinery exposed to moisture
-
Equipment requiring long grease life and low maintenance
Operating Temperature Range: –60 °C to +200 °C
Short-Term Maximum Temperature: Up to 250 °C
Typical Technical Data
| Property | Typical Value | Test Method |
|---|---|---|
| Appearance | Light yellow homogeneous grease | Visual |
| Penetration (1/4 working), 0.1 mm | 62 | GB/T 269 |
| Dropping Point | 315 °C | GB/T 3498 |
| Oil Separation | 10.35 % (m/m) | GB/T 392 |
| Evaporation Loss (200 °C, 1 h) | 1.07 % | SH/T 0337 |
| Copper Corrosion (100 °C, 3 h) | Pass | SH/T 0331 |
| Apparent Viscosity (–50 °C, 10 s⁻¹) | 383 Pa·s | SH/T 0048 |
| Oxidation Stability (100 °C, 500 h) | ΔP = 0 kPa | SH/T 0335 |
International Brand Benchmarking & Spec Comparison
7016 High/Low Temperature Lubricating Grease is positioned as a technically comparable and cost-effective alternative to internationally recognized wide-temperature, aviation and electric motor bearing greases from leading brands such as Klüber, Mobil, and Shell.
Engineering Reference Comparison Table
| Parameter | 7016 Grease | Klüber | Mobil | Shell |
|---|---|---|---|---|
| Comparable Product | — | Klübertemp HB 53-391 | Mobilith SHC 220 | Shell Gadus S5 V220 |
| Base Oil Type | Synthetic oil | Synthetic oil | Synthetic oil | Synthetic oil |
| Thickener Type | Organic thickener | Polyurea | Lithium complex | Lithium complex |
| Operating Temp. Range (°C) | –60 to +200 | –40 to +180 | –40 to +150 | –40 to +150 |
| Short-Term Max Temp. (°C) | 250 | 200 | 180 | 180 |
| Dropping Point (°C) | 315 | >250 | >260 | >250 |
| Water Resistance | Excellent | Good | Good | Good |
| Mechanical Stability | Excellent | Excellent | Excellent | Excellent |
| Typical Application Focus | Aviation electric motors | Precision bearings | Industrial motors | Industrial bearings |
| Positioning | Wide-temp aviation motor grease | Premium precision | Premium industrial | Premium industrial |
Technical Positioning Note:
Compared with Mobilith SHC and Shell Gadus S5 series, 7016 grease offers a wider high-temperature operating capability and better suitability for aviation electric machines, making it particularly effective for motors, generators, and inverter bearings exposed to thermal cycling and moisture.
Packaging, Storage & Handling
-

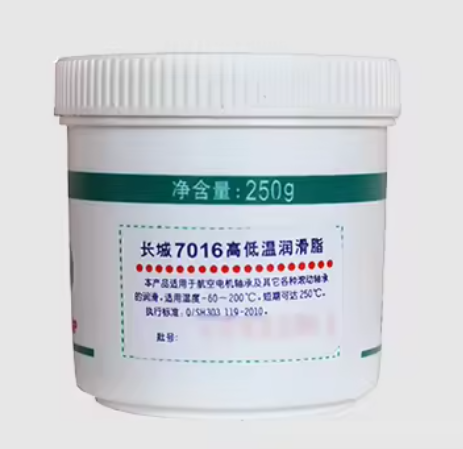

Standard Packaging: 250 g plastic box (OEM packaging available)
-
Store in a clean, dry place away from direct sunlight
-
Clean and dry lubrication points before application
-
Do not mix with other greases
Conclusion
7016 High/Low Temperature Lubricating Grease delivers reliable lubrication performance across extreme temperature ranges, combining excellent thermal stability, mechanical stability, and water resistance. With performance comparable to premium international products from Klüber, Mobil, and Shell, it represents a technically sound and economical solution for aviation electric machines and high-temperature industrial bearing applications.
