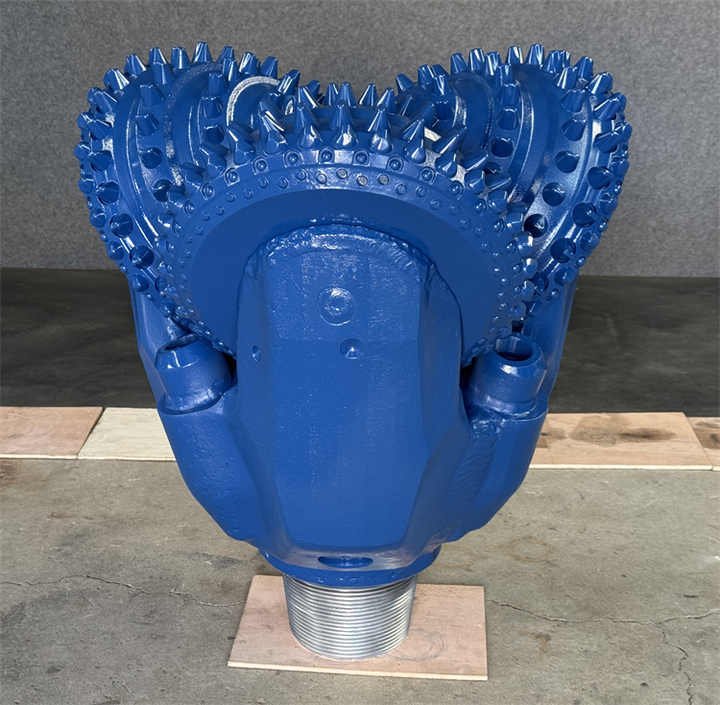

27” IADC617 Tricone Bit

The 27-inch TCI Tricone Drill Bit is a premium-grade rotary drill bit manufactured to deliver exceptional performance in demanding drilling conditions. Designed for tough geological formations, this tricone bit is particularly suited for oil and gas exploration, mining, and geothermal drilling operations. With a rugged structure, superior sealing system, and efficient cutting features, this bit ensures reliable penetration and durability even in the most abrasive and high-compressive formations.

Type and Structural Design

This drill bit falls under the TCI (Tungsten Carbide Insert) tricone drill bit category. TCI bits are known for their excellent wear resistance and cutting efficiency, particularly in formations with high compressive strength. The inserts are strategically placed and engineered from premium tungsten carbide materials to enhance bit life, ensure uniform rock breaking, and maintain consistent drilling performance over extended periods.

The 27-inch TCI tricone bit is designed with a robust body structure that withstands high weight-on-bit (WOB) and rotary torque loads. Its precision-engineered cone geometry ensures optimal contact with the formation, improving rate of penetration (ROP) and reducing drilling vibration.

Bearing Type: Rubber Sealed Journal Bearing

The bit utilizes a rubber sealed journal bearing system, offering reliable protection and longevity in high-load, high-temperature environments. The rubber seal provides an effective barrier against abrasive particles and drilling fluids, keeping the internal bearing system clean and lubricated throughout the drilling process. This type of bearing reduces internal friction and wear, ensuring smooth rotation and extended bit life, especially during prolonged drilling sessions in hard formations.

Thread Connection: 7 5/8″ API Reg Pin

The drill bit is equipped with a 7 5/8-inch API Regular Pin connection, a standardized and widely accepted thread form in the drilling industry. This connection offers high structural integrity, ensuring that the bit is securely fastened to the drill string. It also simplifies integration into various bottom hole assembly (BHA) configurations, enhancing operational flexibility across different drilling rigs and platforms.

Gauge Protection

To ensure the borehole maintains its intended diameter throughout the drilling process, the bit features advanced gauge protection. This protection includes hardfaced surfaces and additional tungsten carbide inserts strategically placed around the bit’s gauge region. Gauge protection minimizes the wear caused by wall contact, preserves the hole size, and enhances the bit’s overall service life by preventing early erosion or dimensional loss.

Operating Parameters: WOB and RPM

The recommended Weight on Bit (WOB) for this tool ranges from 0.35 to 1.05 KN/mm, and the Rotary Speed (RPM) should be maintained between 110 and 40 revolutions per minute. These operating parameters are optimized for medium-hard formations with interspersed harder materials. By adhering to the specified WOB and RPM range, operators can achieve optimal drilling efficiency while minimizing tool fatigue and formation damage.

Application Formations

This TCI tricone bit is specifically engineered for medium-hard formations that contain high compressive strength and thick, hard stringers. It performs exceptionally well in challenging lithologies such as:

• Hard shale

• Limestone

• Sandstone

• Dolomite

Its rugged design and durable cutting structure allow it to effectively penetrate abrasive and interbedded rock layers, providing high drilling efficiency and operational stability across a variety of geological environments.

Weight and Compliance

The bit weighs approximately 800 kilograms, offering the necessary mass and strength to withstand heavy loads and demanding downhole conditions. Manufactured in compliance with the SY/T5164 industrial standard, the bit meets strict specifications for quality, safety, and performance. This standard assures users of its consistency, reliability, and compatibility with global drilling operations.

Conclusion

The 27-inch High Quality TCI Tricone Drill Bit is a powerful and durable solution for challenging drilling applications. With features like rubber sealed journal bearings, strong gauge protection, and high-performance TCI inserts, it is built to handle tough formations and maintain high efficiency. Its compliance with industry standards and robust construction makes it a top choice for professionals seeking long-lasting, high-performance drilling tools.
