chemical-processing-steam-rubber-hose
-
Product Title

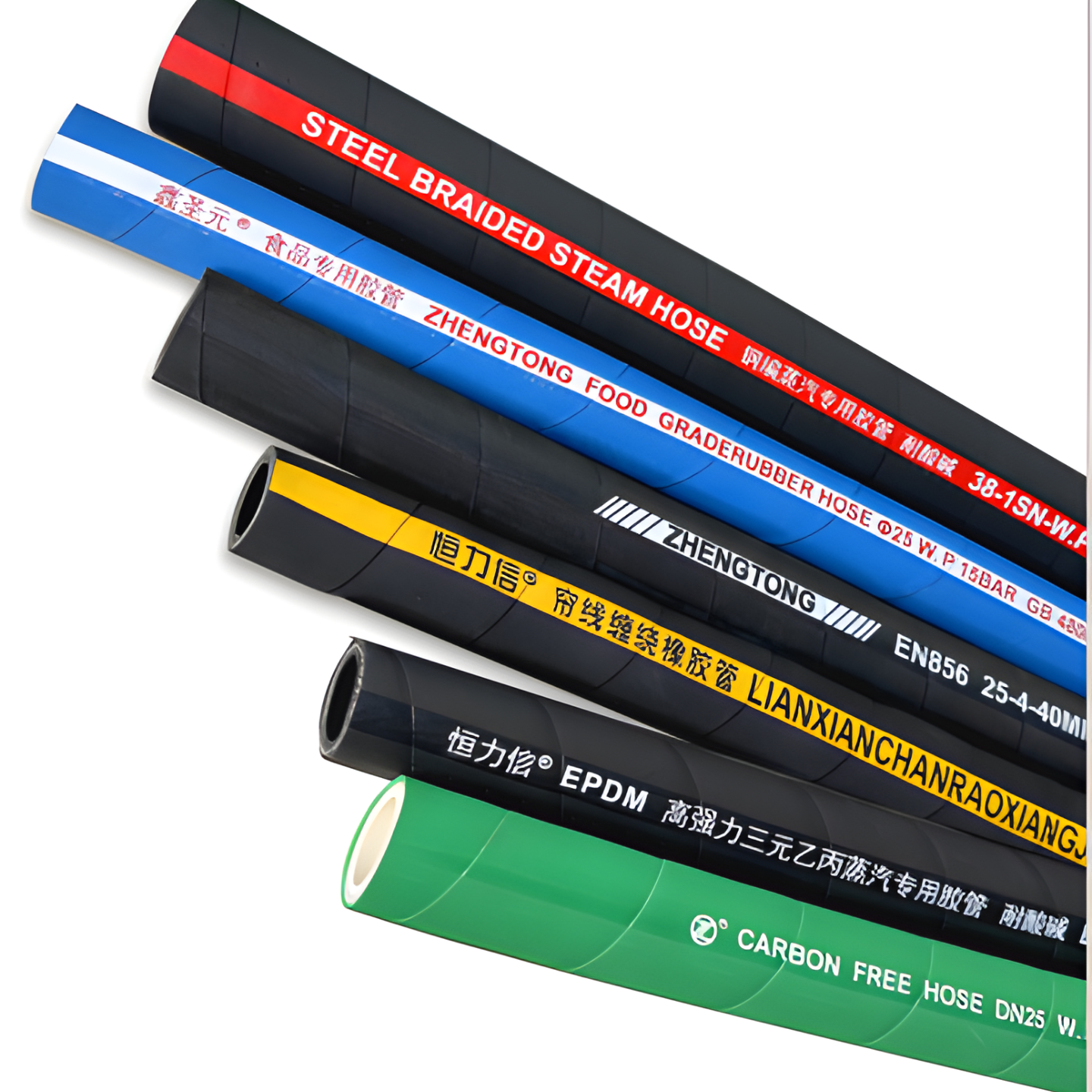

High-Temperature EPDM Steam Hose – HG/T 3036-2009 Standard Nylon Reinforced Rubber Hose for Chemical Plants
Product Overview
Our STEAM HOSE is high-performance piping engineered for safe, high-pressure conveyance of saturated steam and high-temperature water. Built with premium EPDM rubber for both inner and outer layers and reinforced with a double-layer nylon thread middle structure, this hose fully complies with the HG/T 3036-2009 standard for saturated steam applications.
Specially formulated for severe industrial duty, it offers outstanding heat tolerance operating between -35°C to +220°C. The advanced EPDM compound provides excellent resistance to acid and alkali chemical attack, high pressure, atmospheric aging, and thermal cracking. Rated for a working pressure of 20 bar (300 psi) and a burst pressure of 60 bar (900 psi), it delivers dependable safety in chemical plants, refineries, and manufacturing facilities.
Key Features & Benefits
-
Full EPDM Rubber Construction: Inner and outer layers feature premium EPDM for optimal thermal stability and chemical resistance.
-
Dual Nylon Thread Reinforcement: High-tensile two-layer nylon braiding provides excellent pressure handling up to 20 bar (300 psi).
-
Extended Heat Tolerance: Withstands harsh operating temperatures from -35°C to +220°C.
-
Chemical & Aging Resistance: Superior protection against acids, alkalis, ozone, UV exposure, and steam aging.
-
Certified Standard Compliance: Built strictly to meet the HG/T 3036-2009 specification for saturated steam hoses.
Applications
-
Saturated steam and high-temperature water transfer in chemical plants
-
Heat processing, sterilization, and industrial cleaning systems
-
Refineries, paper mills, power stations, and heavy manufacturing facilities
-
| I.D. (inch) | I.D. (mm) | O.D. (mm) | Layer | W.P. (bar) | W.P. (psi) | Burst Pressure (bar) | Burst Pressure (psi) | Max Length (m) | Max Length (ft) |
|
5/8″
|
16 |
25±1 |
2 |
20 |
300 |
60 |
900 |
20 |
70 |
|
3/4″
|
19 |
29±1 |
2 |
20 |
300 |
60 |
900 |
20 |
70 |
|
1″
|
25 |
35±1 |
2 |
20 |
300 |
60 |
900 |
20 |
70 |
|
1 ¼”
|
32 |
43±1 |
2 |
20 |
300 |
60 |
900 |
20 |
70 |
|
1 ½”
|
38 |
50±1 |
2 |
20 |
300 |
60 |
900 |
20 |
70 |
|
–
|
45 |
– |
2 |
20 |
300 |
60 |
900 |
20 |
70 |
|
2″
|
51 |
64±1 |
4 |
20 |
300 |
60 |
900 |
20 |
70 |
